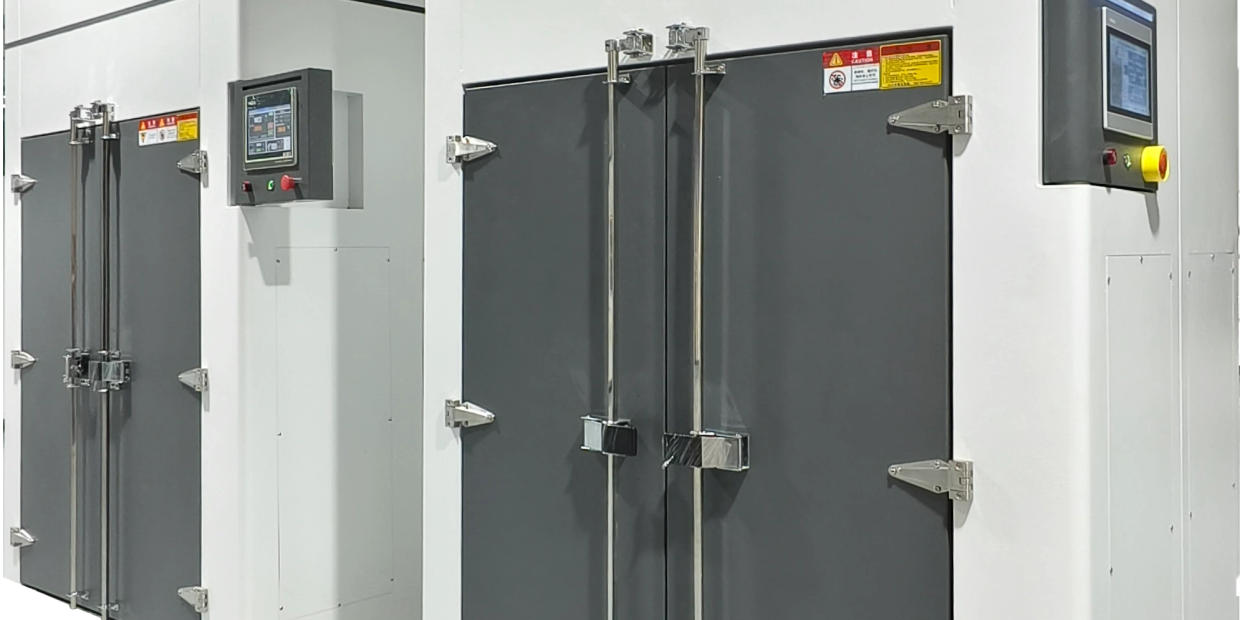

Industrial Oven
Welcome to Top Union Machine Manufacturing
The industrial oven series is our cornerstone product, widely used in various industries such as electronics, hardware, plastics, chemicals and automotive. It provides stable and efficient solutions for heat treatment processes including drying, curing and preheating of various precision workpieces.
Industrial Oven Series: Precise, Efficient and Reliable
Intelligent temperature control system
Multiple security protections
Efficient hot air circulation
Sturdy and durable structure

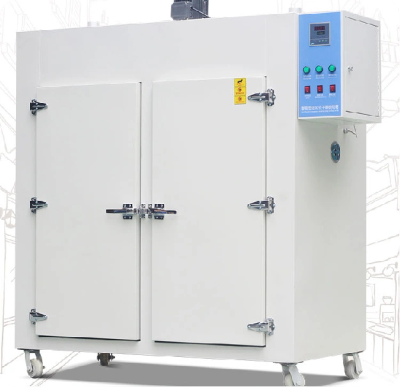

Constant Temperature Industrial Oven
Special for secondary vulcanization of silicone rubber
Special for secondary vulcanization of silicone rubber
Special for secondary vulcanization of silicone rubber
- Temp. Range: RT ~ 300°C
- Heating Element: SUS304-U Sharp Heater with Heat sink
- Accuracy: ±0.1°C
- Temp. Controller: PID AT Output
- Temp. Uniformity: ±3℃ (Unloaded)
- Inner Material: SUS304
- Power Voltage: AC380V±10% 60Hz 20KW
- Protect Systerm: Earth Leakage / Phase Loss / Motor Overload Protect / OverTemp. Alarm
- Air Circulation Systerm: 1500W Motor + 10.5" Fan, Horizontal Air Circulation
- Explosion Proof: Blast Door Auto Open of Excessive inner Pressure
- Heating Speed: Heating Speed Adjustable, 30min. from RT to 200°C (Unloaded)
Widely used in silicone vulcanization, plastic part drying, chemical product drying, hardware baking finish, etc.
Multi-layer independent control oven
Special for secondary vulcanization of silicone rubber
Special for secondary vulcanization of silicone rubber
- Temp. Range: RT ~ 300°C
- Heating Element: SUS304-U Sharp Heater with Heat sink
- Accuracy: ±0.1°C
- Temp. Controller: PID AT Output
- Temp. Uniformity: ±3℃ (Unloaded)
- Inner Material: SUS304
- Power Voltage: AC380V±10% 50Hz 22KW
- Protect Systerm: Earth Leakage / Phase Loss / Motor Overload Protect / OverTemp. Alarm
- Air Circulation Systerm: 750WMotor +10.5" Fan, Horizontal Air Circulation
- Explosion Proof: Blast Door Auto Open of Excessive inner Pressure
- Heating Speed: Heating Speed Adjustable, 30min. from RT to 200°C (Unloaded)
Widely used in silicone vulcanization, plastic part drying, chemical product drying, hardware baking finish, etc.
Industrial PLC 24KW High Power Drying Oven
PLC 24KW HIGH POWER DRYING OVEN
Designed for high-power and high-precision needs, suitable for large mold preheating, metal workpiece heat treatment, composite material curing, and electronic component aging testing.
Rated Heating Power： 24 KW (Max)
Rated Working Voltage： 380V / 415V
Core Heating Method： Forced Hot Air Convection
Intelligent Temp Control: PLC Fully Automatic
Tunner Ovens
Tunnel Ovens: Efficiency Engine for Continuous Production
Designed for assembly-line operations, enabling uninterrupted continuous production, greatly improving efficiency, and is the ideal choice for large-scale production.
Continuous Operation: Automatic workpiece entry and exit via mesh belt or chain conveyor.
Flexible Configuration: Customizable tunnel length, number of heating zones, and temperature profiles.
Multi-source Heating: Can use hot air circulation, infrared, or a combination of both.
Space Optimization: Special designs like U-shape available to save workshop space.

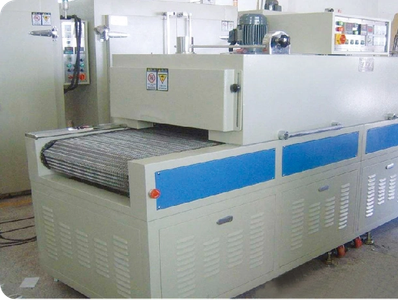

Mesh Belt Industrial Heat Treatment Tunnel Oven
Tunnel Oven Mesh Belt Drying Machine
Widely used in continuous production scenarios such as electronic component drying, post-plating hardware drying, printing ink curing, and automotive parts coating curing.
Voltage: 380v
Conveyor: Mesh Belt/Chain
Process: Curing/Drying
Vacuum Ovens: Ideal for Special Material Processing
Vacuum Ovens
By drying in a negative pressure environment, vacuum ovens significantly lower the boiling point of liquids, achieving low-temperature rapid drying while preventing oxidation and material deformation.
Vacuum Environment: Effectively prevents material oxidation and discoloration.
Low-Temperature Drying: Ideal for heat-sensitive materials.
Efficient Degassing: Rapidly removes moisture and volatile gases from materials.
PLC Intelligent Control：Achieves precise control of vacuum level and temperature.
